| Hardware | |
| RoHS 2.0 / REACH Compliant | |
| Operating Temperature | -20°C ~ 60°C |

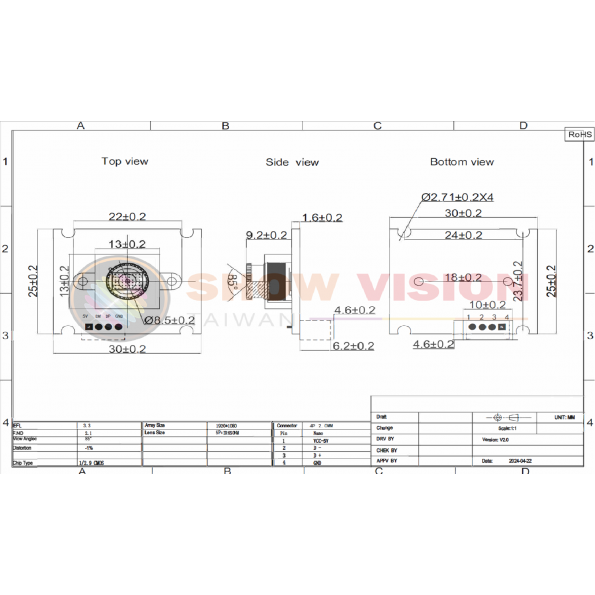

| Dimensions | 30(L) * 25(W) * 17 (H) mm |
| Weight | TBD |
| Lens | ||
| Lens Composition | 5 Plastic + IR Filter | |
| Field of View | Mechanical (M) | 87° ±5% |
| Diagonal (D) | 85° ±5% | |
| Horizontal (H) | 78° ±5% | |
| Vertical (V) | 51° ±5% | |
| IR Wavelength (T50%) | 650 nm ±10nm | |
| Effective Focal Length (EFL) | 3.3 ±5% | |
| TV Distortion | ≦ 1% | |
| F/No | 2.1 ±5% | |
| Focus Mode | Fixed Focus (FF) | |
| Focus Range | 10cm ~ 150cm | |
| Frames rate | Full HD /60 fps | |
