| Hardware | |
| RoHS 2.0 / REACH Compliant | |
| Operating Temperature | -30℃ - 80℃ |

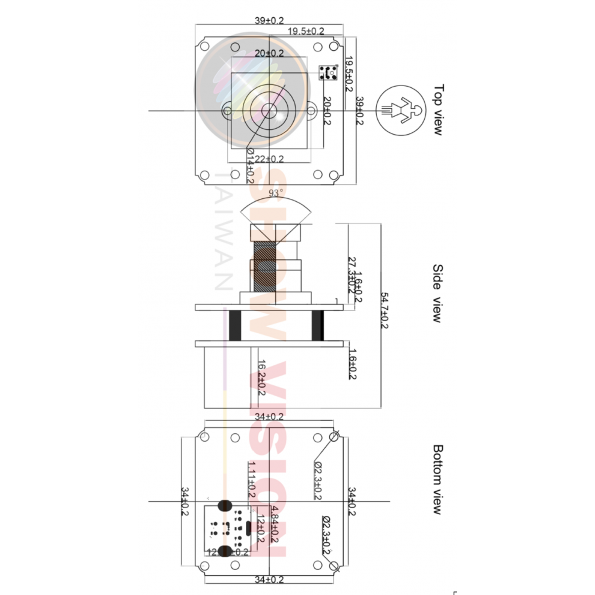

| Dimensions | 30(L) * 25(W) * 24.6(H) mm |
| Weight | TBD |
| Lens | ||
| Lens Composition | 5Glass +2Plastic + 1IR | |
| Field of View | Mechanical (M) | 97° ±5% |
| Diagonal (D) | 93° ±5% | |
| Horizontal (H) | 82° ±5% | |
| Vertical (V) | 45° ±5% | |
| IR Wavelength (T50%) | 650 nm ±10nm | |
| Effective Focal Length (EFL) | 4.2±5% | |
| F/No | 2.0 ±5% | |
| Focus Mode | Fixed Focus (FF), Manual Focus | |
| Focus Range | 50cm – 200cm | |
| Frames rate | Full HD 60 fps | |
| HD 120 fps | ||
